71918ACE/HCP4A軸承
SKFSKF 71918ACE/HCP4A軸承是磐固晟長期經銷 的產品，磐固晟與SKF公司具有長期的71918ACE/HCP4A軸承采購計劃，可以為國內用戶提供足夠數量的SKF 71918ACE/HCP4A軸承，讓您的工廠無憂運轉。
型號：71918ACE/HCP4A
品牌：SKF
內徑：90
外徑：125
厚度：18
系列：角接觸球軸承, 精密, ACE/HC, contact angle 25°, hybrid
【更新日期：2016/8/3 電腦版 71918ACE/HCP4A軸承】

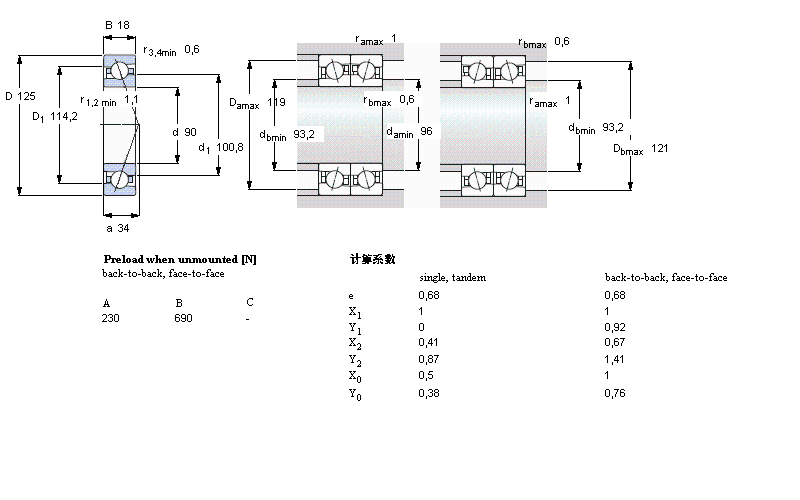

71918ACE/HCP4A軸承
| 角接觸球軸承, 精密, ACE/HC, contact angle 25°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 90 | 125 | 18 | 28,1 | 21,6 | 0,88 | 14000 | 22000 | 0,46 | 71918 ACE/HCP4A | - | |
